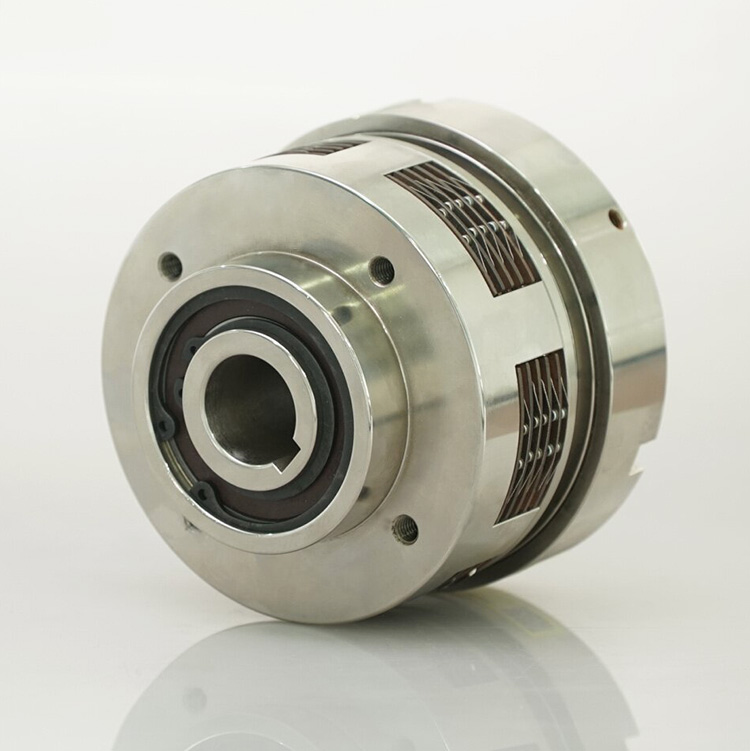

BDC/DPC model Air multi-disc clutch

Air multi-disc clutch is also called multiple disc shaft clutch, multiple copper-based friction plates and steel disc engagement together by air pressure. No slippage, engagement tightly, integrated structure, easy installation, small size and large torque. Compared with tooth clutch, multiple air friction plate clutch is more suitable for high-speed integration and high-speed rotating. HD company manufactured BDC model air multiple friction plates clutch is widely applied in industry automation, packing and printing machinery, engineering sanitation vehicle, water pump fan and etc. Our clutches have gained good reputation in the market by our customers. It can replace NEXEN DPC model pneumatic multi-disc clutch complete with high torque, reached fast connecting and fast rotating.

BDC/DPC mode Air multiple friction plates clutch main characters:

1. Group copper-based friction plates and steel disc structure, small size while transmit torque is several times than other same size clutch.
2. Inside and outside return springs, nearly separated, no idling rotating friction load.
3. Linking and releasing in moment, controlled by air pressure.
4. Integrated structure, easy installation and no worry about coaxiality.
5. High-speed engagement and release.
6.Dry and wet working environment both can be work.
