HMC Air caliper disc brake DBZ
HMC/DBZ model Air caliper disc brake

As a type of small brake, the installation is flexible, can save more installation room. Application of torque control and brake maintenance specially adapt to the light loading condition. Convenient for release of heat and maintenance, we can supply the model of pneumatic (HMC-A/DBZ-A) and manual hand control (HMC-H/DBZ-M).


152-0180-5440

View other product information>>

HMC/DBZ model Air caliper disc brake

HMC/DBZ air caliper disc brake can be divided into two types: air driven and manual driven. As a type of small brake, the installation is flexible, can save more installation room. Application of torque control and brake maintenance specially adapt to the light loading condition. Convenient for release of heat and maintenance, we can supply the model of pneumatic (HMC-A) and manual hand control (HMC-H).

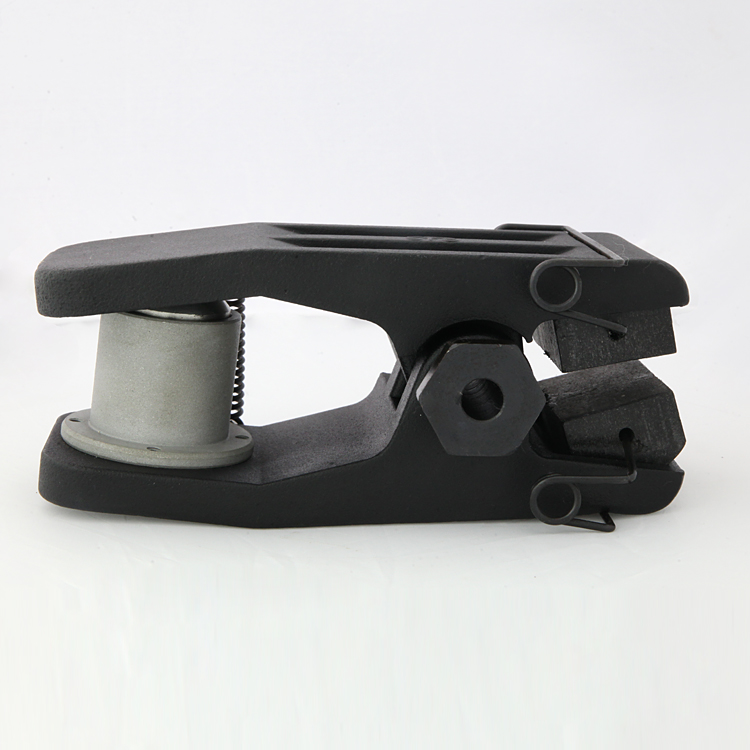

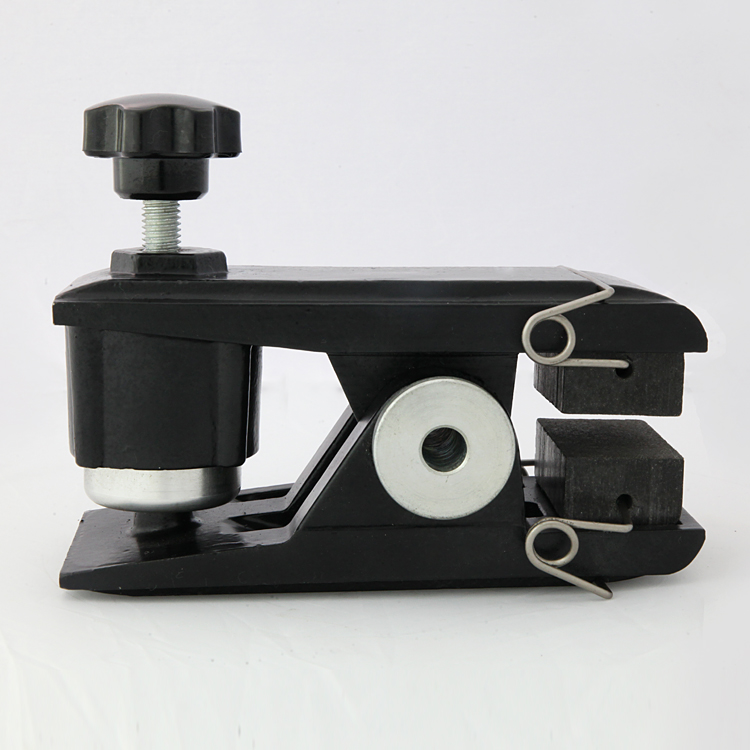

HMC model Air caliper disc brakeHMC-H HMC model Air caliper disc brakeHMC-A

HMC model air caliper disc brake characters:

Disc mode brake, it is suitable for different installation methods. Large friction size and long service life. If installed some pieces of brakes on a disc, torque will be increased in several
times accordingly.

HMC/DBZ model Air caliper disc brake technical data

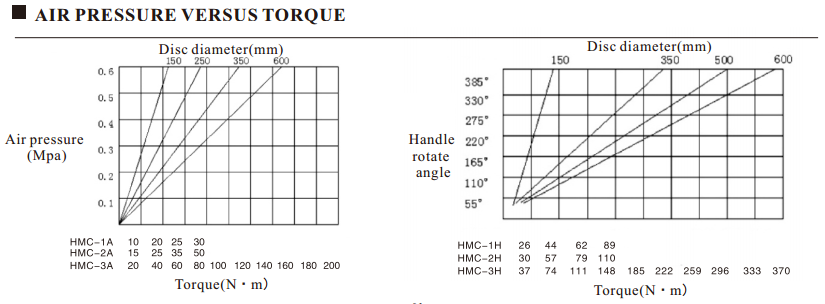

This is a small and flexible air brake, used for disc braking. Brake torque can be adjusted through air pressure or hand. At the same time, braking disc diameter different, the braking torque is different, too.

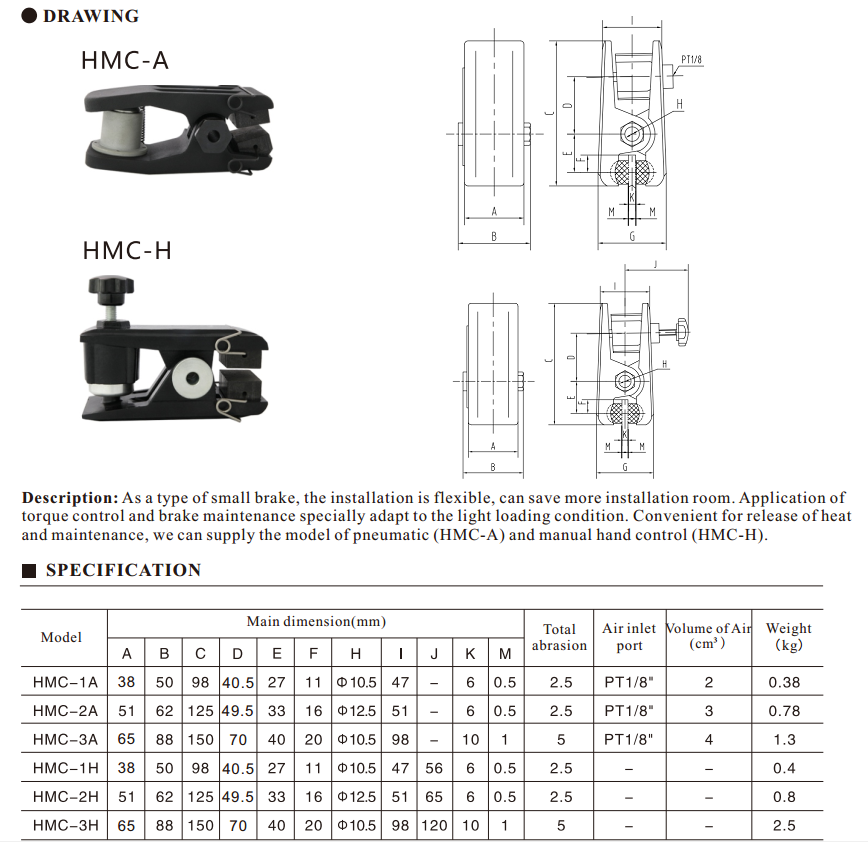

HMC model Air caliper disc brake structure
