NAC Air shaft clutch CSCP
NAC model air shaft clutch description:
NAC model air shaft clutch is linked with air pressure, released by return springs. Disc relies on air pressure to slide along the direction of the axis, contacting the friction plate. Disc, friction plate and so on, are assembling to the wheel to come into an integrated structure. This model can fully replace CSCP model air friction disc clutch completely.

NAC model air shaft clutch characters:
1. Torque adjustment range is wide
It can be adjust torque in wide range according to air pressure adjustment.
2. Safe and reliable
It will not produce electric spark
3. Suitable for high-frequent, continuous sliding movement
It is durable in high frequency, high load and continuous sliding movement industry situation, also can be used as limiter.
4. Small impact
After connecting, increase air pressure softly, to reach stable start and reduce impact for equipment.
5.Long service life
Good heat dissipation and less abrasion.
6. Compact structure
Belt can be connected with clutch for working, convenient for usage.

152-0180-5440

View other product information>>

NAC model air shaft clutch fully replacement ASAHI CSCP model air disc clutch

NAC model air shaft clutch is linked with air pressure, released by return springs. Disc relies on air pressure to slide along the direction of the axis, contacting the friction plate. Disc, friction plate and so on, are assembling to the wheel to come into an integrated structure.

NAC model air shaft clutch

NAC model air shaft clutch advantage

1. What is the air shaft clutch?

Air shaft clutch is linked with air pressure, released by return springs. Disc relies on air pressure to slide along the direction of the axis, contacting the friction plate. Disc, friction plate and so on, are assembling to the wheel to come into an integrated structure.


2. What is the characters of air shaft clutch?

1) Small size, light, torque can be adjusted by air pressure.
2) No electric spark.
3) It is durable in high frequency, high load and continuous sliding movement industry situation.
4) Can be used as a torque limiter.
5) Soft start.
6) Good heat dissipation, thicker lining, long service life.

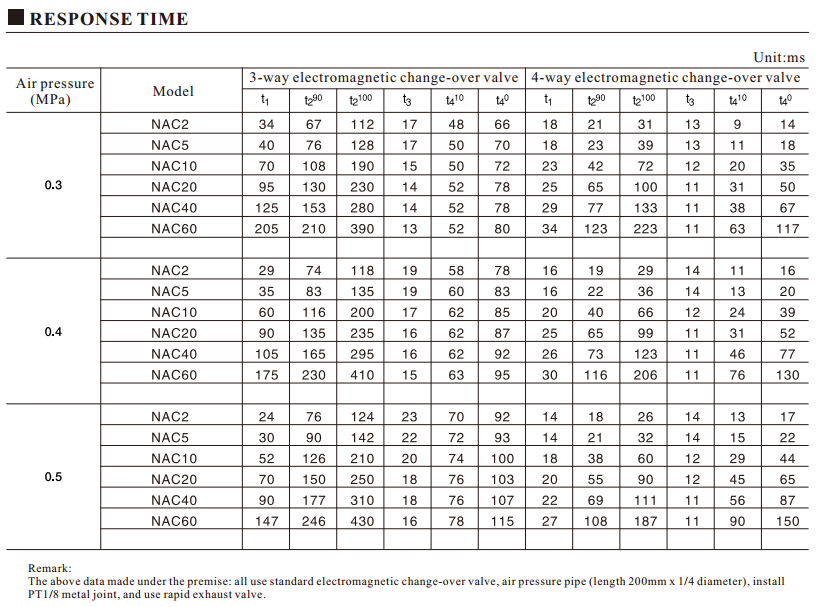

NAC model air shaft clutch technical data:

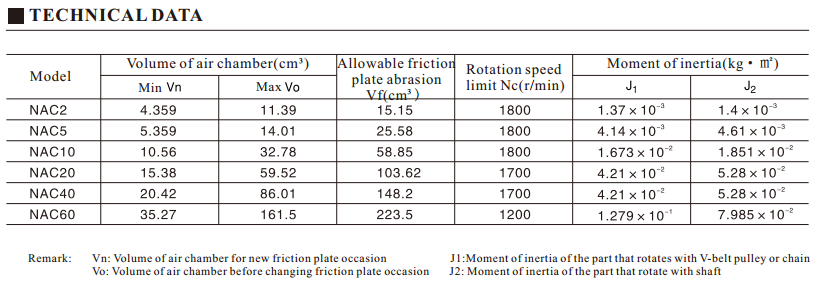

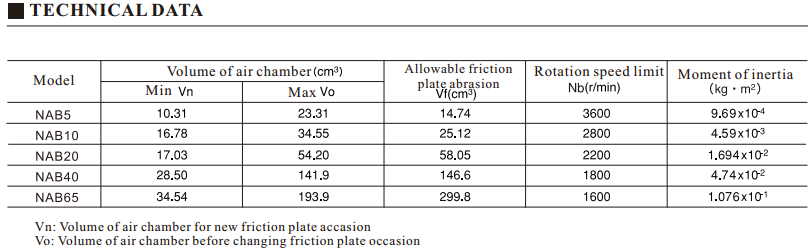

Air shaft clutch technical data:

Model: NAC-2, NAC-5, NAC-10, NAC-20, NAC-40, NAC-60/CSCP 2, CSCP 5,X, CSCP 10,X, CSCP 60 (fully replacement)                                                                                                                   Weight: 2.9-50kg

Dimension: 258*226*50mm (shaft diameter 50mm)

Torque: 26-590N.M

Air pressure: 0.6Mpa
Volume of air chamber (cm3): 86.01
Allowable friction plate abrasion Vf (cm3) : 148.2

Rotating speed limit Nc (r/min): 1200-1800r/min

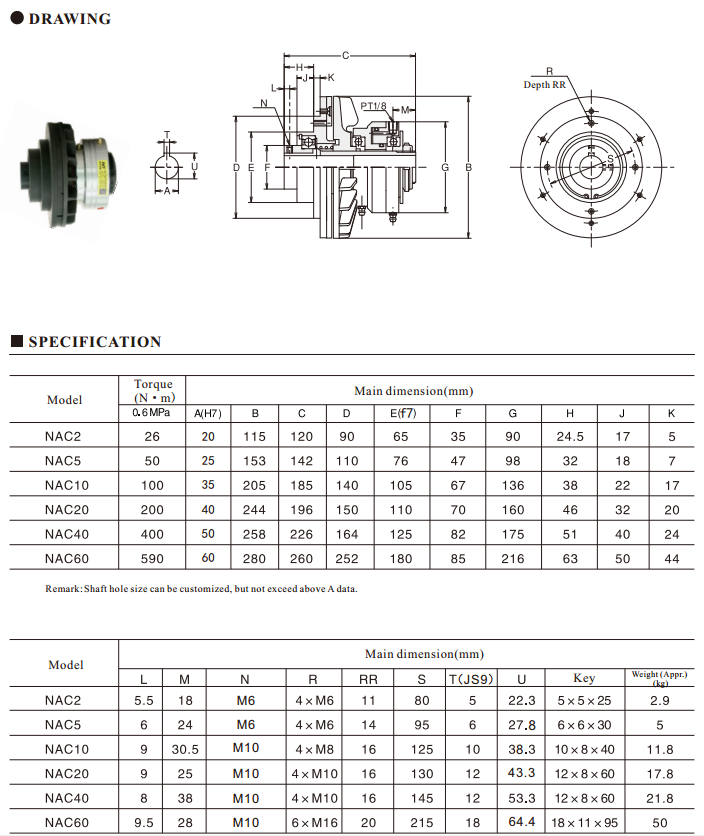

NAC model air shaft clutch structure
