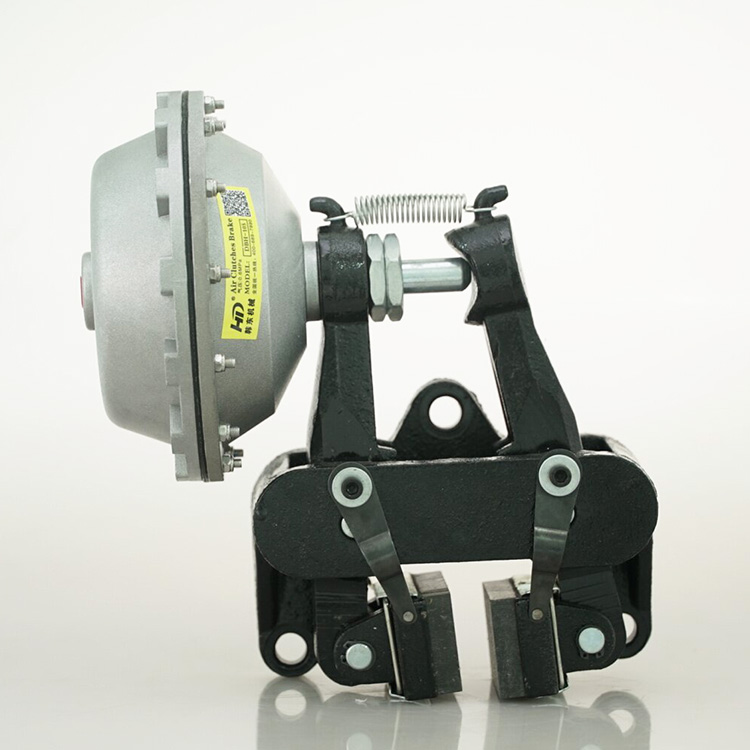

This air caliper disc brake driven by air pressure, no electric spark, anti-explosion, safe and reliable. Braking force can be adjusted at random, torque range is wide. Good heat dissipation, lining is wear-resistant, two-cut type is easy for replacement. It is suitable for working machinery, construction machinery, steel rolling machinery, wire drawing machine, stranding machine, rolling machine, gantry crane, hoist, paper making machinery, ship, trimming machinery, feeding machine, orientation machine, tension controller and etc. It has vertical and horizontal types, horizontal type brake model like this: DBH104,DBH105,DBH204,DBH205,DBH385.
DBH model horizontal type air caliper disc brake ADVANTAGE:

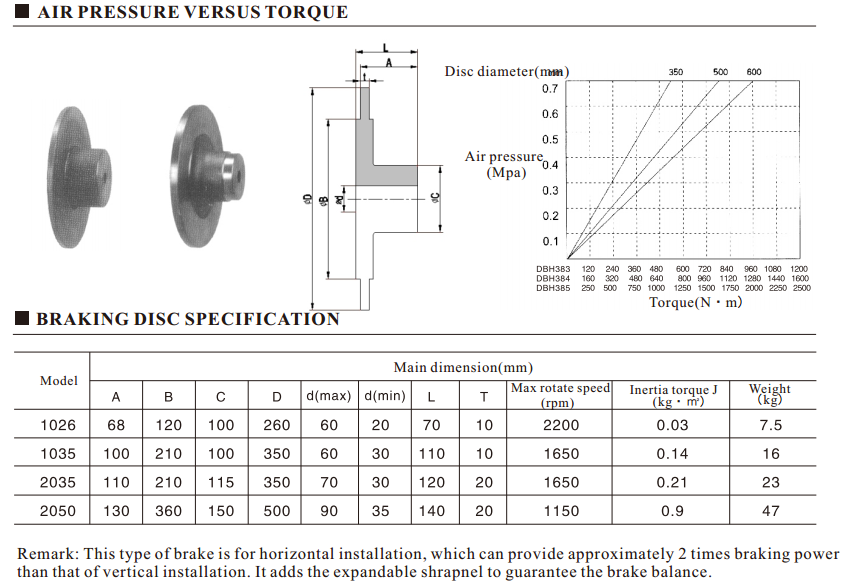

DBH model horizontal type air caliper disc brake torque is nearly twice of vertical type brake, equipment with elastic springs to make sure braking balance. Brake disc thickness 10mm-20mm is available.

Air caliper disc brake

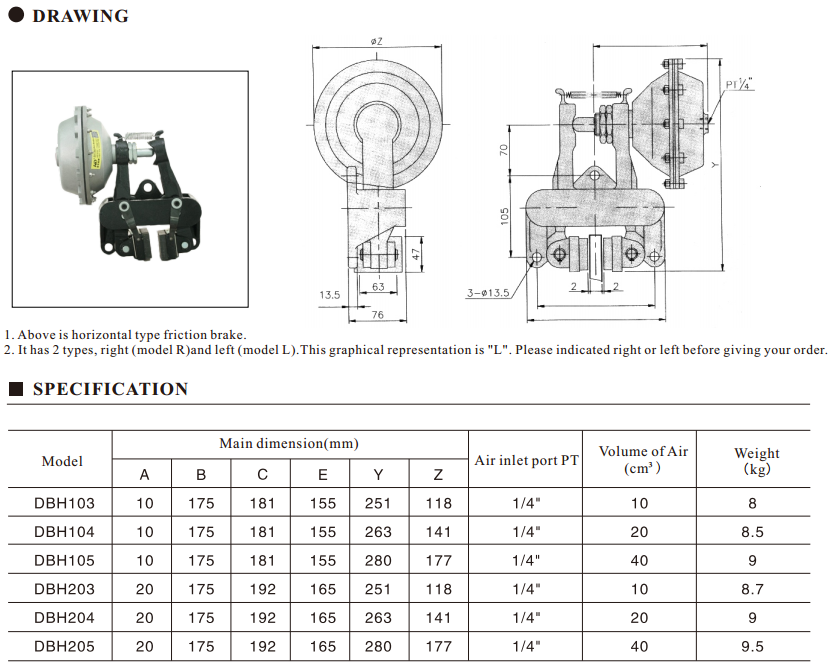

This air caliper disc brake driven by air pressure, no electric spark, anti-explosion, safe and reliable. Braking force can be adjusted at random, torque range is wide. Good heat dissipation, lining is wear-resistant, two-cut type is easy for replacement. It is suitable for working machinery, construction machinery, steel rolling machinery, wire drawing machine, stranding machine, rolling machine, gantry crane, hoist, paper making machinery, ship, trimming machinery, feeding machine, orientation machine, tension controller and etc. It has vertical and horizontal types, horizontal type brake model like this: DBH104,DBH105,DBH204,DBH205,DBH385
DBH model horizontal type air caliper disc brake characters:
1. Good heat dissipation. It is driven by air pressure, compared with electromagnetic brake, air caliper disc brake with large thermal capacity, can be used in high frequency, continuous slippage situation. Because it is not driven by electromagnetic, so it will not damaged by overheating, even temperature up, it will not reduce torque.

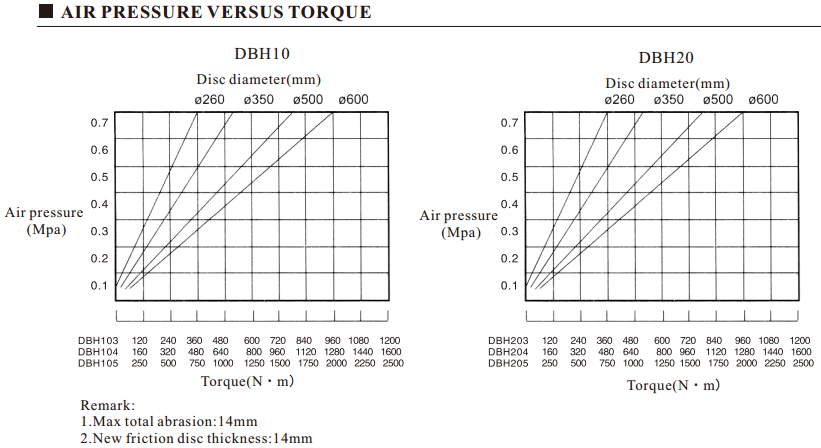

2. Wide torque adjustment. Change torque via adjust air pressure, prevent overload gate, tension control, soft start and stop.
3. Driven by air pressure, safe and reliable, will not produce electric spark. No-asbestos lining with good wear and heat resistant.
4.Air caliper disc brake response time is fast 20% than electromagnetic brake, smooth linking and easy braking torque adjustment.
5. Long service life, simple maintenance and good heat dissipation. Thicker lining, its service life is longer 2.5-5 times than electromagnetic brake. Because of integrated structure, installation and operation is very easy. Lining is convenient for replacement.
