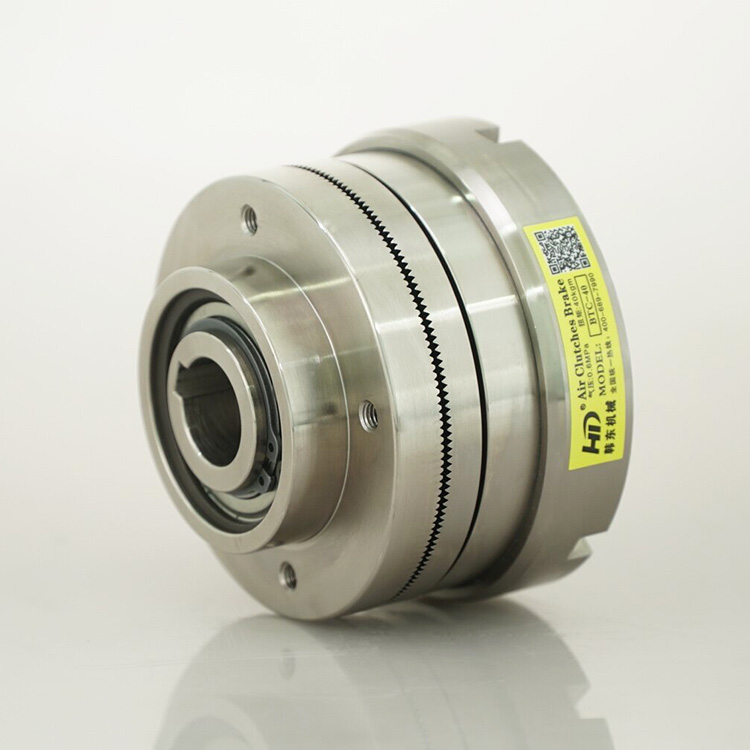

BTC/RBTC model pneumatic tooth clutch description

Pneumatic tooth clutch through driving tooth plate and driven tooth plate engagement, small size while transmit torque is several times than other mode air clutch. It can transmit 1:1 torque and no
residual. Engagement and release in moment, action flexible and fast. Engagement structure and easy installation. It can replace HAC RBTC model air tooth clutch.

BTC mode air clutch characters: Standstill or low speed engagement, high-speed rotating. It is widely used in tire forming machine, convey machine, automatic equipment, food machinery, medical machinery, printing machinery,packaging machinery, corrugated machinery, electrical machinery, lead wire equipment, textile machinery, rubber machinery, tire machinery, production line, paper making machinery, construction machinery, plywood machinery, punching machine, die-cutting machinery, crusher and etc. It also applied in robot, mechanical arm and other high technology industry.

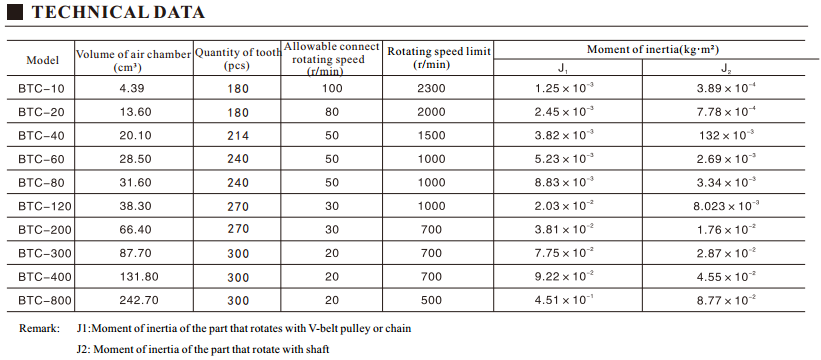

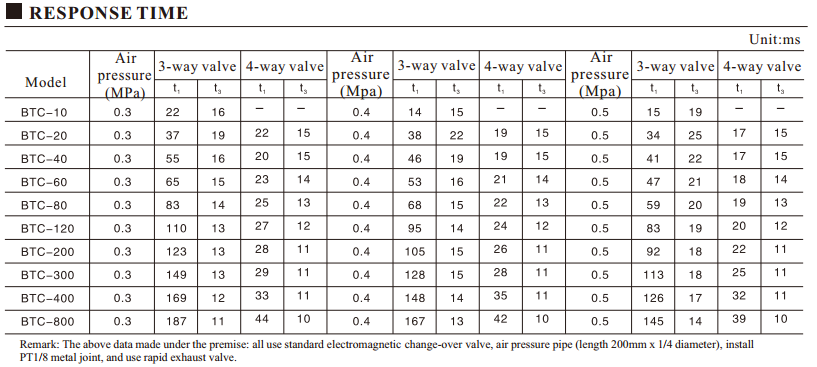

BTC model pneumatic tooth clutch Characters:

1) After supplying air pressure, driving tooth plate and driven tooth plate integrated with axial movement; after exhausting air pressure, driving tooth plate and driven tooth plate are separated by return springs.

2) Tooth clutch can transmit power accurately without slippage since each tooth fits exactly to one another. Suitable for narrow space, it can transmit high torque in compact size. Torque range is 10kgf.m-1600kgf.m, bigger torque also available.

3) Tooth and tooth engagement, small size, while transmit torque is several times than other same size clutch.

4) 1:1 transmit torque, without slippage and torque lost.

5) Instant integrate or separate, action flexible and rapid.

6) Integrated structure, both ends of tooth coaxial degree is high.

7) Low-speed integration, high-speed rotating.
8) Dry and wet working environment both can be work.

BTC model pneumatic tooth clutch operation precaution:
1. Connect rotation

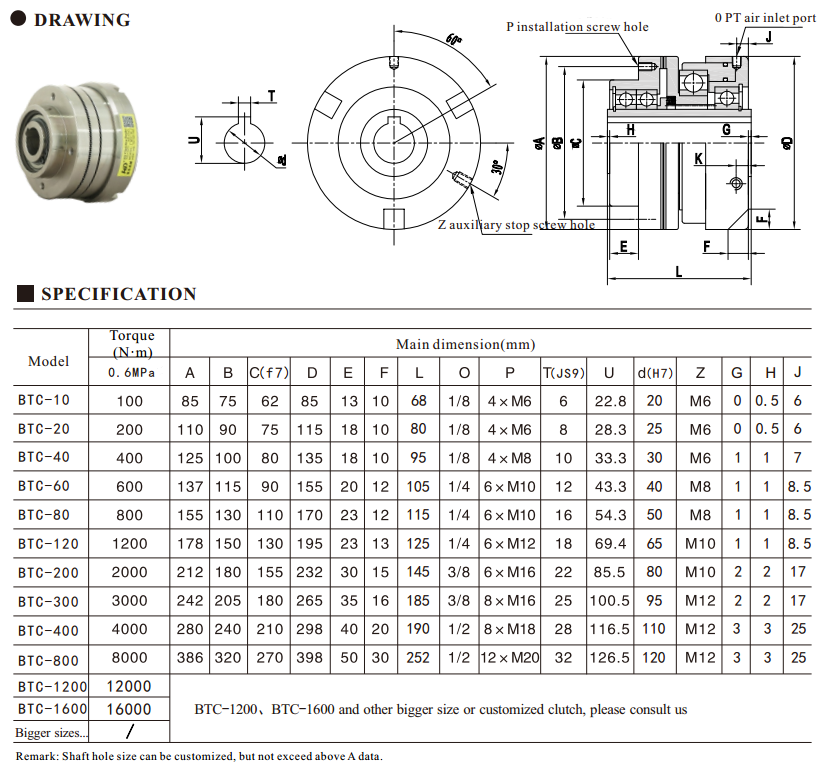

Air cylinder and piston will be caused connect rotation by bearing, it can be use 3 pieces of stop grooves in 120°
angle or auxiliary stop groove screw holes to fix or stop. Be careful, when they are stopped, cylinder shouldn’t
be incline because of interference power, or it will affect clutch normal working.
2. Precaution when installation clutch onto shaft
It is better to use professional tool to inflate hollow shaft tube when install clutch onto shaft, don't hit cylinder or
other easy wearing parts.

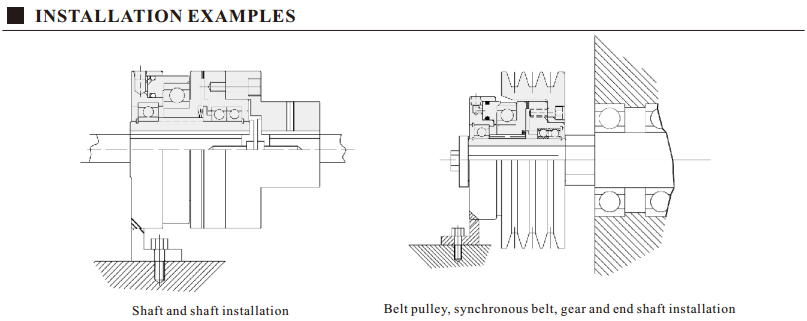

3. Belt pulley and gear installation
When install belt pulley or gear onto clutch driving cover, try to make sure radial force center of belt pulley or gear is
align with two units of bearings'loading center of driving cover.Excessive incline will influence clutch service life.
4. Bearing lubrication
The trust ball bearing should be lubricated periodically. The period is between 1 to 6 months according to using
occasion. Because the other bearings are sealed, there is no need to supply.
5. Avoid high load working
It is better to use double or triple safety factor when choose model, overload usage will reduce clutch service life.
