NAB Air disc brake S-450
NAB/S-450 model pneumatic disc brake

This brake is widely used in slitting machine, film laminating machine, printing machinery, wire and cable machinery, automatic machinery, curtain machinery, flocking machinery,.computer rust machine, hardware machinery, food machinery, automatic lathe, wood machinery, plywood machinery, automatic packaging machinery, strapping machine, fishing machinery, textile machinery, bag making machinery and etc.

Brief introduce of NAB model (standard model) air pneumatic shaft disc brake:

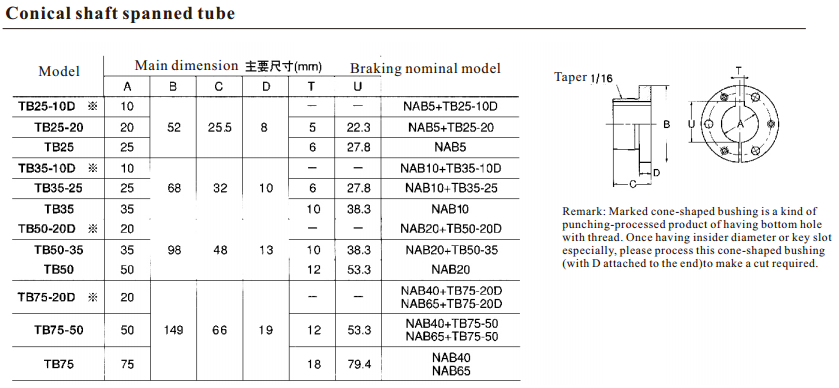

NAB model (standard model) air shaft disc brake equipped cone-shape bushing with wedge to mounted onto shaft. Two-cut type lining can be replaced keeping mechanical structure complete. It reduced heat generated from friction by cooling plate mounted on disc with hub. Friction plate is two-cut style, using screwdriver to take out head inside screw through hole of disc with hub, in order to replace friction plate.

152-0180-5440

NAB model air caliper disc brake can replace S-450 model air disc brake completely

NAB model (standard model) air shaft disc brake equipped cone-shape bushing with wedge to mounted onto shaft. Two-cut type lining can be replaced keeping mechanical structure complete. It reduced heat generated from friction by cooling plate mounted on disc with hub. Friction plate is two-cut style, using screwdriver to take out head inside screw through hole of disc with hub, in order to replace friction plate. This air shaft disc brake is widely used for industry machinery, such as wire machinery, printing and packing machinery, rubber tire machinery, automatic machinery and etc.

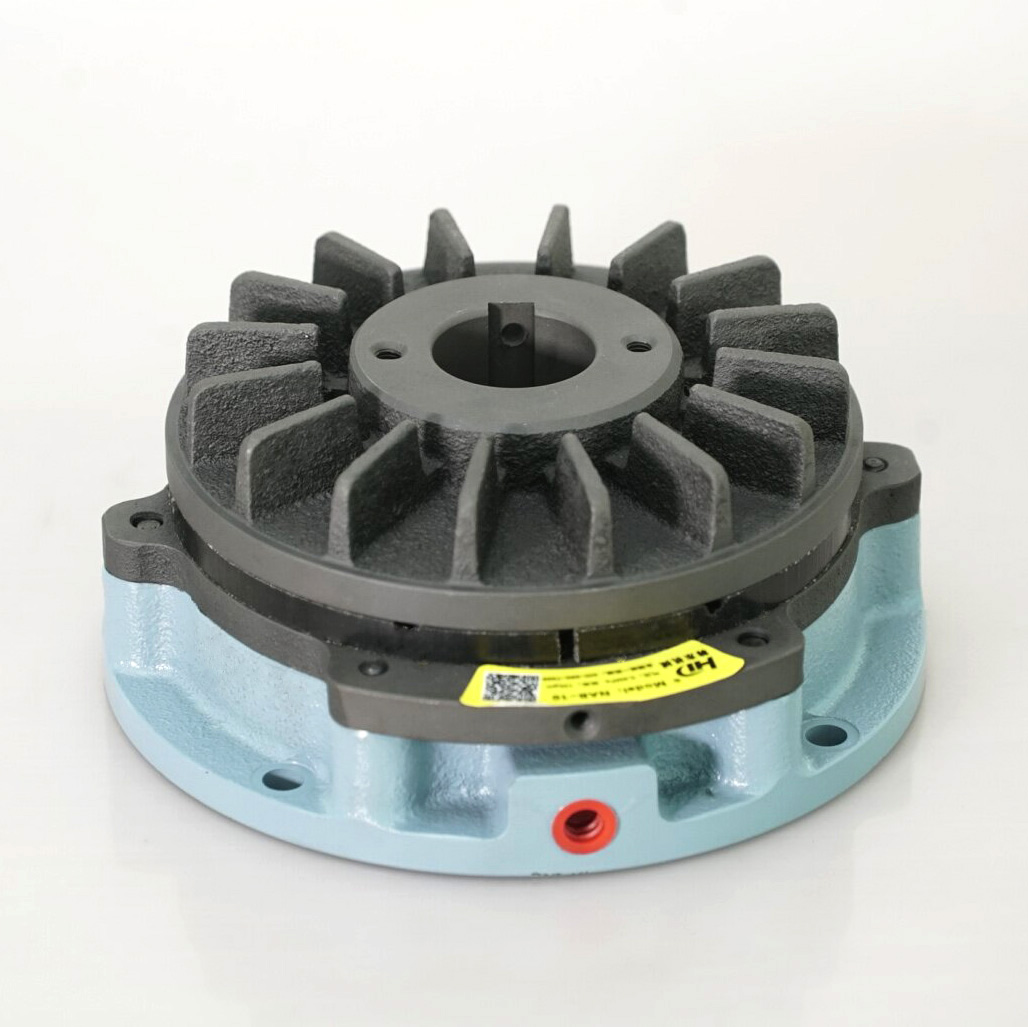

NAB model air caliper disc brake

NAB model air disc brake main characters:

1. Shaft type air brake, easy installation and fix method is not affected by air inlet port position.

2. Suitable for continuous slippage or high frequency working environment, good heat dissipation.

3. It is suitable for fix point braking, tension control and high frequency usage.

4. Torque can be adjusted by air pressure.

5. Wide torque adjustment range, air pressure is from 0.4~6kgf/cm2.

6. Anti-explosion, no electric spark and safe.
7. Long service life, simple maintenance and good heat dissipation, two-cut type lining is easy for replacement.

NAB model pneumatic caliper disc brake

Technical data:

Model: NAB-10

Dimension: 182*79.5*35

Torque: 100N.M

Volume of air chamber (cm3): 34.55

Air pressure: 0.6MPa

Weight: 6.6KG

Work mode: Automatic

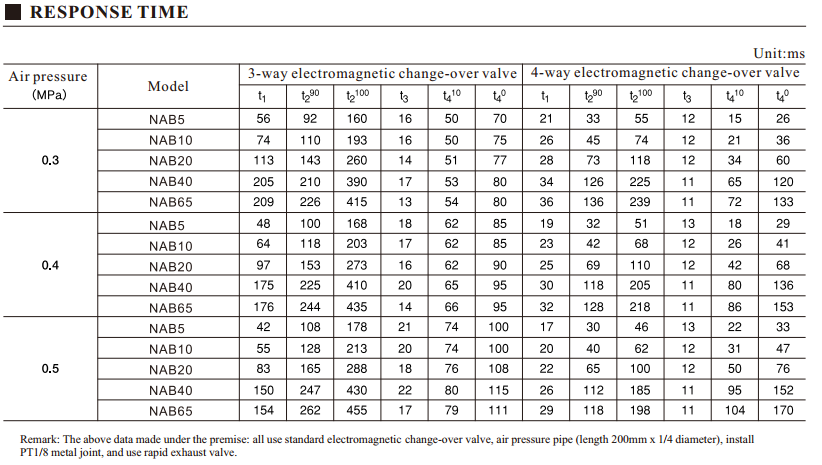

Main model: NAB-5  NAB-10  NAB-20  NAB-40  NAB-65/NAB-10T  NAB-20T  NAB-40T  NAB-65T/S-450/600/800/1000/1200/1400/ T-450/600/800

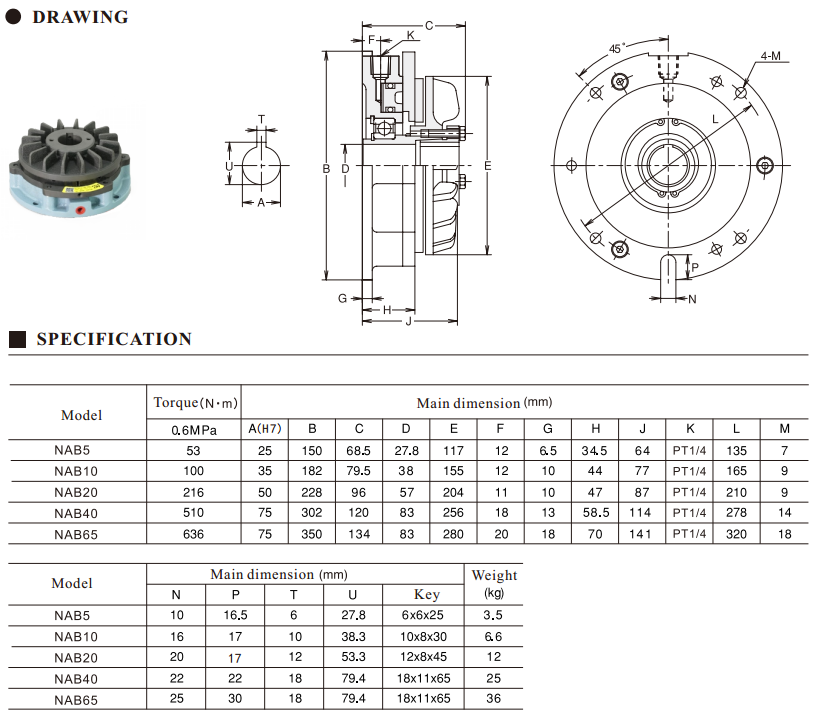

NAB model pneumatic disc brake structure:
