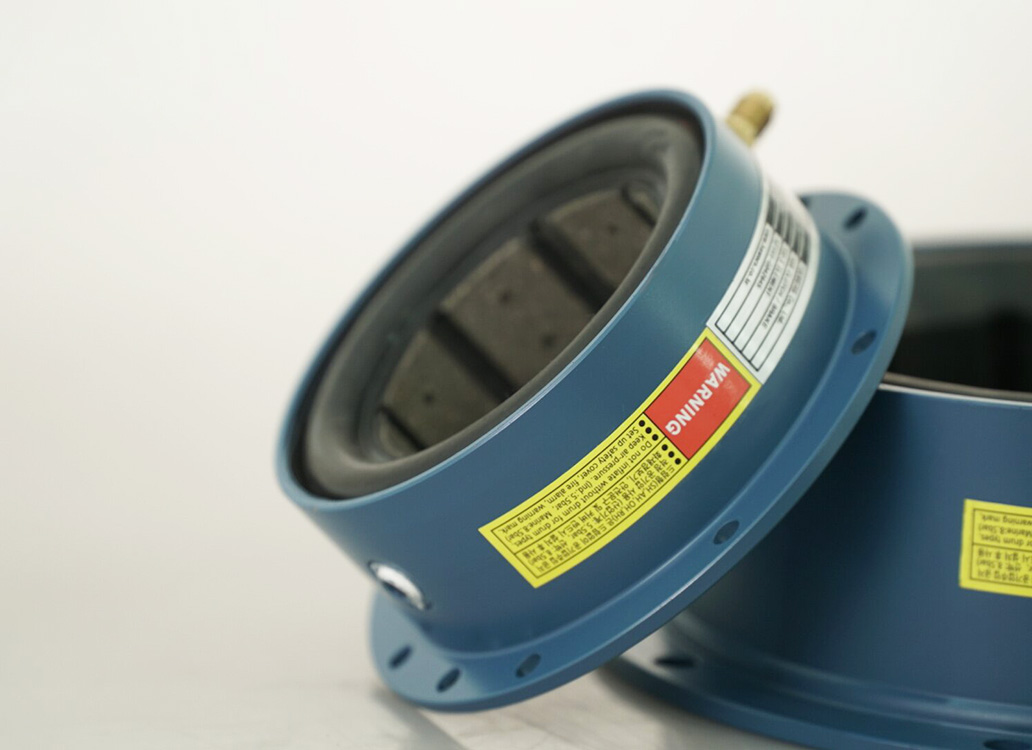

SH-20(20CB500) model Drum type pneumatic clutch or brake

SH-20(20CB500) model drum type pneumatic clutch or brake is HAwers’ representative product. This SH type can be engaged with an inside drum by pneumatically actuated tube with linings. It can be applied to clutches (power transmission) or Brakes (power braking). SH model drum type clutch or brake is equality with Eaton CB model constricting clutch or brake, installation size of them are the same. SH model drum type clutch or brake can replace Eaton CB model constricting brake completely, SH-4 model is also named 20CB500. When you choose our pneumatic clutch or brake SH-4(20CB500), we will offer you the professional suggestion and solve the problem for you patiently. Quality, service, professional is our company long term philosophy, solve customers’ problem and meet customers’ satisfaction is our target

SH-20(20CB500) model Drum type pneumatic clutch or brake Advantage:

HAwers SH model model drum type pneumatic clutch or brake is simple structure, reliable function. It is widely used in high speed, middle and low torque, little heat influence situation. Special design structure makes sure good ventilation performance, eccentricity of the system is compensated while the power is transferred. HAwers main product pneumatic clutch or brake and brake both has inside expanding and outside expanding two types, including SH, AH models. These products is extensive used in marine, cement, oil, natural gas, excavation and other industries. And other industry fields, such as metal processing, paper making, can making, logging and carry, textile, tire and others.

Standard size/model:

SH-3（3CB150）, SH-4 (20CB500), SH-4(20CB500), SH-6(6CB200),SH-8 (8CB250), SH-10(10CB300), SH-12(12CB350),SH-14(14CB400), SH-16(16CB500), SH-18(18CB500),SH-20(20CB500), SH-22(22CB500), SH-24(54CB500), SH-26(26CB525), SH-28(28CB525),SH-30(30CB525), SH-32(32CB525),SH-36(36CB525), SH-40(40CB525), SH-45(45CB525)
