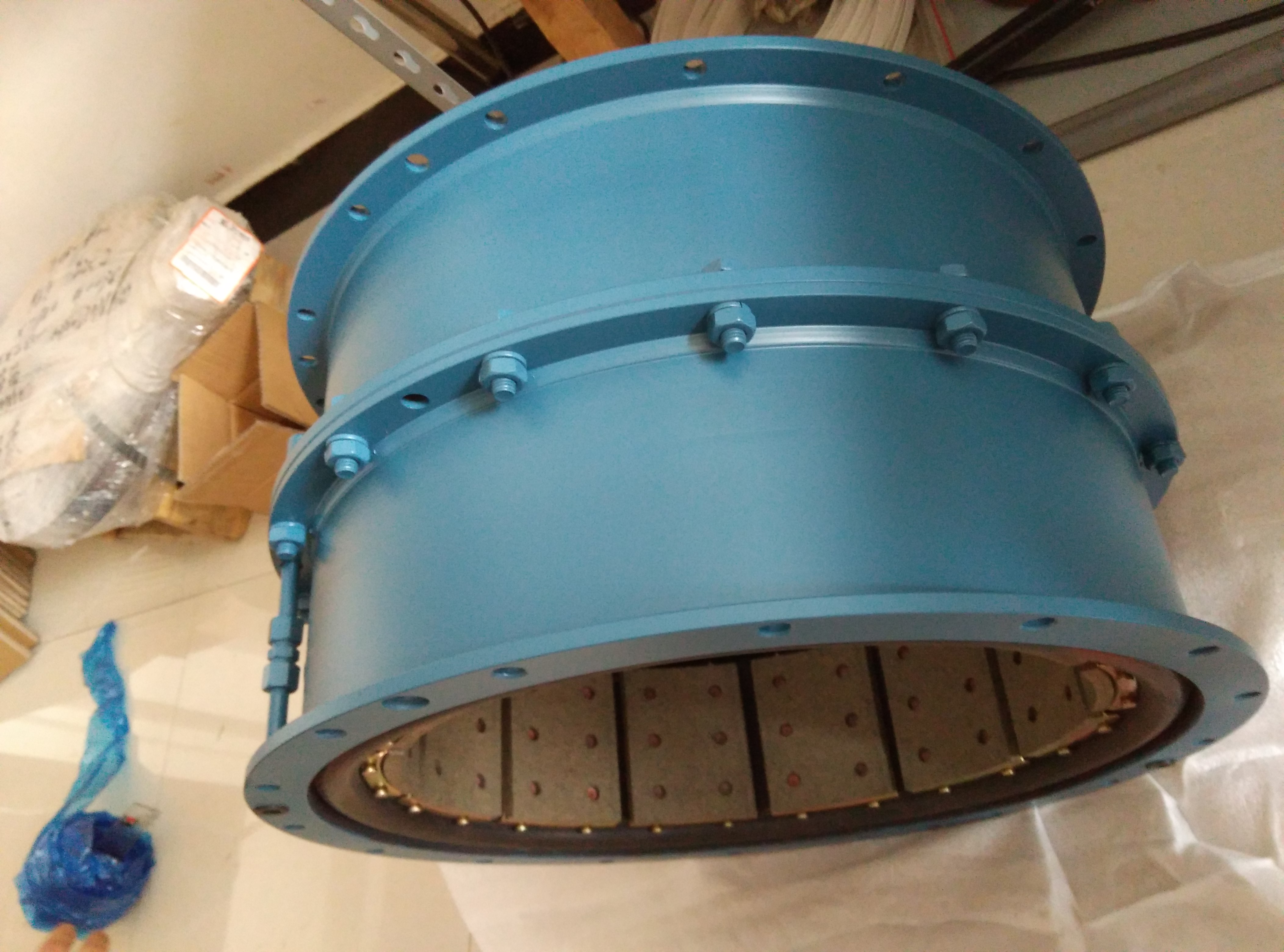

SH-14 Pneumatic drum type clutch, after supplying air pressure, lining and drum compressed, when drum rotated together and transmit torque, it used as a clutch; when drum is fixed, it used as a brake, it depends on actual need.
SH-14 Pneumatic drum type clutch features:
1.Small size, transmit high torque.
2.Long use life, excellent abrasion of linings.
3.Simple structure, easy assembly and dis assembly.
4.Work as brake or clutch.
SH-14 Pneumatic drum type clutch features:
1.Small size, transmit high torque.
2.Long use life, excellent abrasion of linings.
3.Simple structure, easy assembly and dis assembly.
4.Work as brake or clutch.
SH-14 Pneumatic drum type clutch, after supplying air pressure, lining and drum compressed, when drum rotated together and transmit torque, it used as a clutch; when drum is fixed, it used as a brake, it depends on actual need.
SH-14 Pneumatic drum type clutch main characters:
1. Small size while transmit high torque and rotating force.
2. Strong durability and abrasion strength.
3. Long service life and convenient operation.
4. Easy mounting and unloading during working.

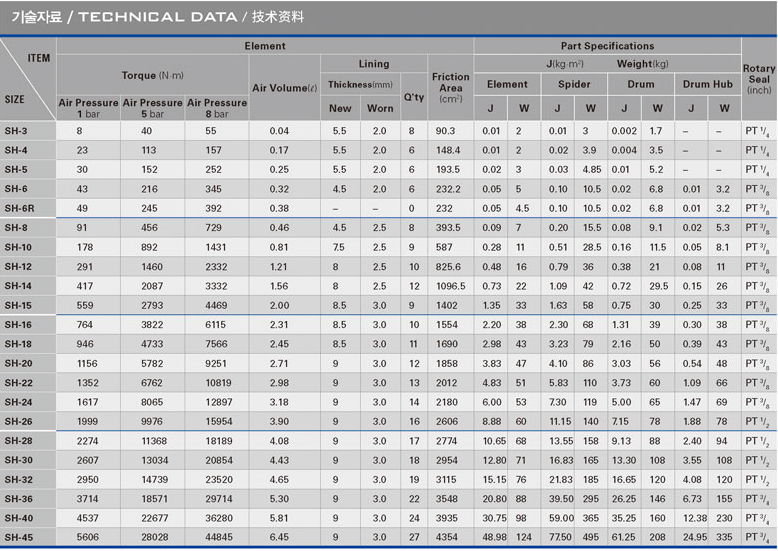

SH-14 Pneumatic drum type clutch technical data:

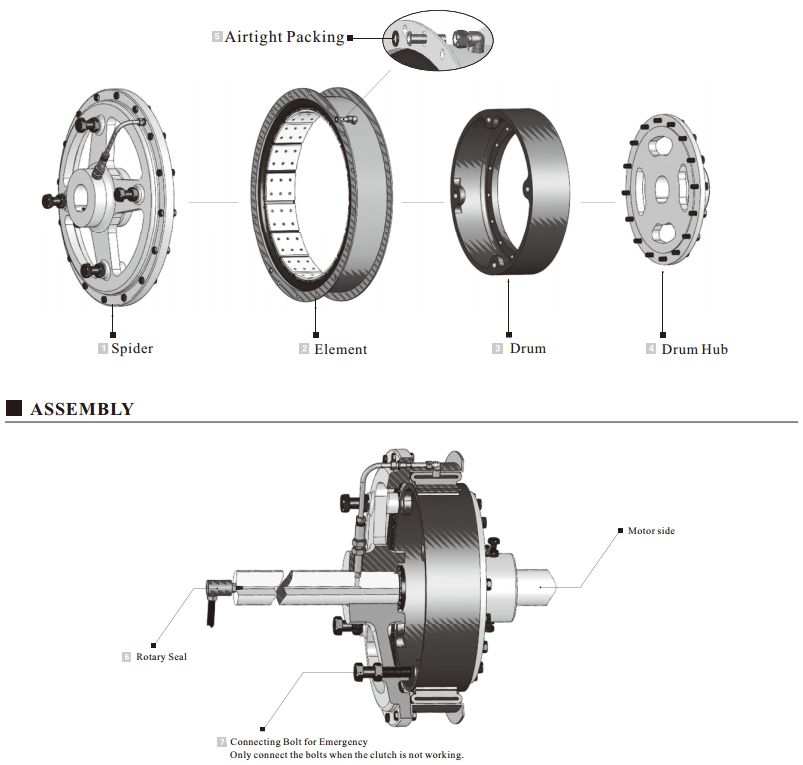

SH-14 Pneumatic drum type clutch structure:
