QDE-N Air caliper disc brake
QDE-N model Air caliper disc brake (springs apply air release) is a kind of air disc brake, it is a high torque air brake. This brake torque force calculates according to the braking disc size, it is in direct proportion to braking disc diameter. As the development of industry market, high torque brake is adopted by all kinds of machinery more and more. Air caliper disc brake as a kind of air brake, it is accepted for a long time, taking the air pressure as working resource. It is economic, durable, low cost, easy installation, simple maintenance and high precision control,wide torque adjustment, good heat dissipation, so it is widely used in packaging machinery, thin paper and corrugated paper machinery, printing machinery, wire equipment, textile machinery, rubber machinery, tire machinery, production line, paper making machinery, construction machinery, food machinery, plywood machinery and etc.

QDE-N model Air caliper disc brake (springs apply air release) main characters:
(1) Resistance to water, dust and high temperature, high durability and stable performance.
(2) Use air pressure as resource, no electric spark, anti-explosion, safety and reliable.
(3) Braking force can be adjusted at random, wide braking torque range.
(4) Good heat dissipation, wearable and two-cut lining, easy for replacement.

It is suitable for working machinery, packing and printing machinery, rubber tire machinery, paper making machinery, stretch wire machinery, stranding machinery, winding machine, trimming shears machinery, unwinding machine, orientation machinery, tension controller and etc. There are two specification air head---4# 、5#, divided into left and right side. Details technical data and brake information, welcome to contact us.

152-0180-5440

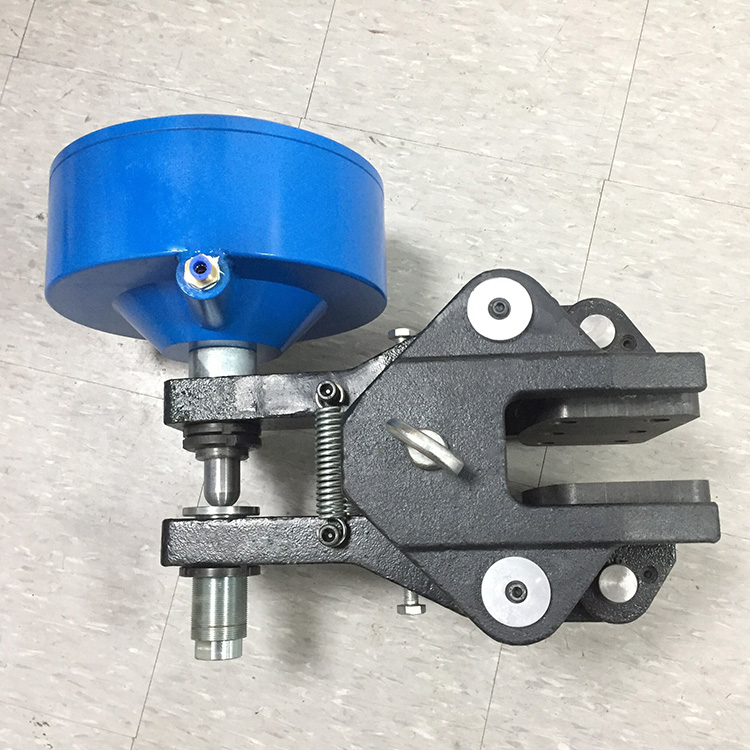

QDE-N model Air caliper disc brake (springs apply air release)

QDE-N model Air caliper disc brake (springs apply air release) is a kind of air disc brake, it is a high torque air brake. This brake torque force calculates according to the braking disc size, it is in direct proportion to braking disc diameter. As the development of industry market, high torque brake is adopted by all kinds of machinery more and more. Air caliper disc brake as a kind of air brake, it is accepted for a long time, taking the air pressure as working resource. It is economic, durable, low cost, easy installation, simple maintenance and high precision control,wide torque adjustment, good heat dissipation, so it is widely used in packaging machinery, thin paper and corrugated paper machinery, printing machinery, wire equipment, textile machinery, rubber machinery, tire machinery, production line, paper making machinery, construction machinery, food machinery, plywood machinery and etc.

QDE-N model Air caliper disc brake (springs apply air release)

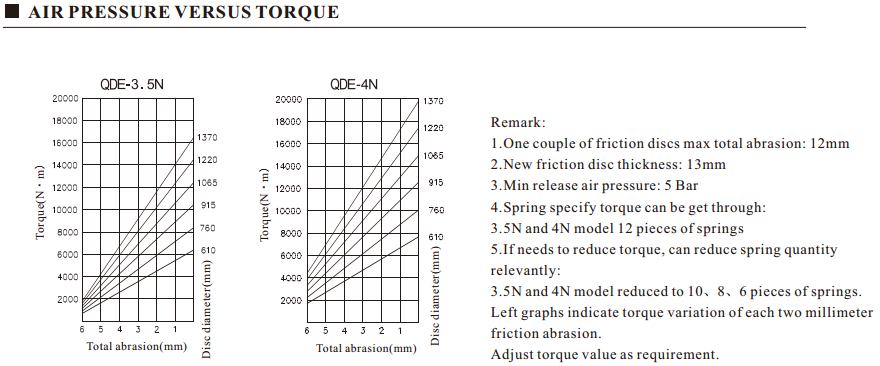

QDE-N model Air caliper disc brake (springs apply air release) technical data:

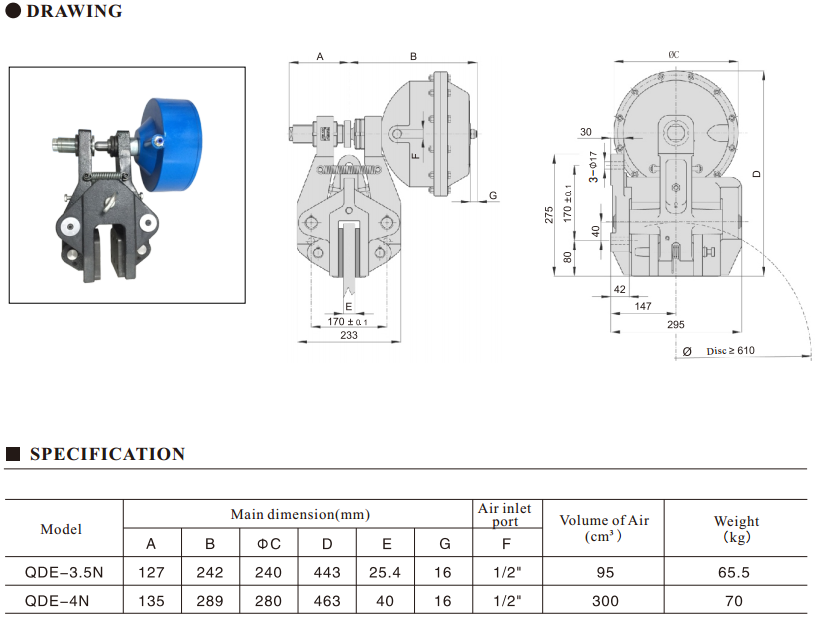

QDE-N model Air caliper disc brake (springs apply air release) structure:
