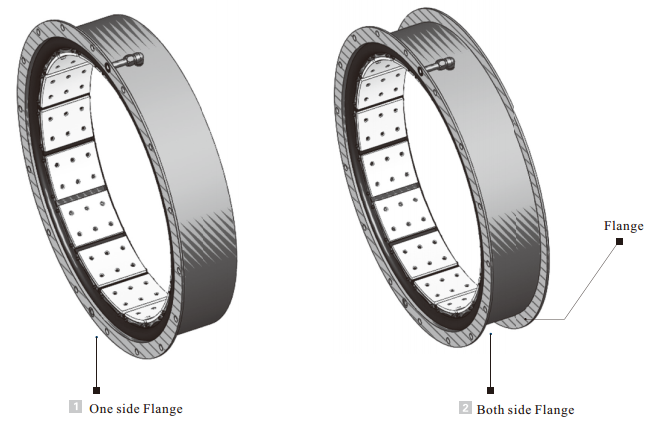

SY model Pneumatic drum type brake clutch

SY model pneumatic drum type brake, after supplying air pressure, lining and drum compressed, when drum rotated together and transmit torque, it used as a clutch; when drum is fixed, it used as a brake, it depends on actual need.

SY model pneumatic drum type brake clutch main characters:
1. Small size while transmit high torque and rotating force.
2. Strong durability and abrasion strength.
3. Long service life and convenient operation.
4. Easy mounting and unloading during working.

SY model Pneumatic drum type brake clutch operation precaution:

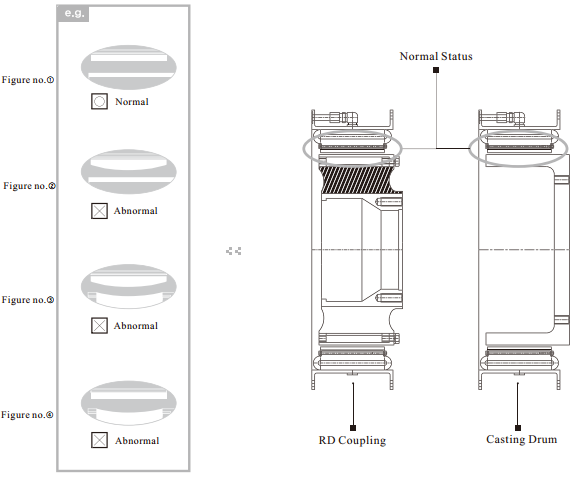

■ In case of change an Element with RD Coupling or casting Drum to repair, mind if the friction surface
is normal status as below mentioned figure no. ①
■ If the friction surface is out of balance as the below mentioned figures no.②,③,④, the Clutch or Brake will not
get a torque enough. It can be a cause of overheating or fire from slipping the linings. Therefore, we recommend
that a RD Coupling or casting Drum should be changed when an Element has been changed.
■ To repair if you change only one part between Element or Drum without any inspection or confirmation of us,
we can not guarantee for the damages.
■ When a clutch is assembled.
