DBM10、DBM20 Hydraulic caliper disc brake
DBM oil hydraulic caliper disc brake is mainly power by brake oil, and can also power by air-actuated matched with hydraulic booster, and it have 2 type, right and left. Please indicated right or left before give our order. The ordinary brakes fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please informed us in advance.

Remark: BST hydraulic booster is mainly power by air pressure and boost air pressure for oil output.


DBM10、DBM20 model hydraulic caliper disc brake main characters:
DBM oil hydraulic disc brake is mainly power by brakes oil, and can also power by air-actuated matched with hydraulic booster. It is dust resistance, high temperature resistance, high durability and stable. Braking force can be adjusted random, braking range is wide.
1. Disc surface most part is touched with air, heat dissipation easy, braking disc surface temperature will not high.
2. Performance stable and flexible.
3. Torque can be adjusted by air pressure, as a constant tension brake.
4. Air pressure 0.1-0.6Mpa adjustment.
5. Easy maintenance, lining wear is automatically compensated by air pressure and oil pressure itself.

152-0180-5440

DBM10、DBM20 Hydraulic caliper disc brake

DBM oil hydraulic caliper disc brake is mainly power by brake oil, and can also power by air-actuated matched with hydraulic booster, and it have 2 type, right and left. Please indicated right or left before give our order. The ordinary brakes fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please informed us in advance.

Remark: BST hydraulic booster is mainly power by air pressure and boost air pressure for oil output.

DBM10、DBM20 Hydraulic caliper disc brake

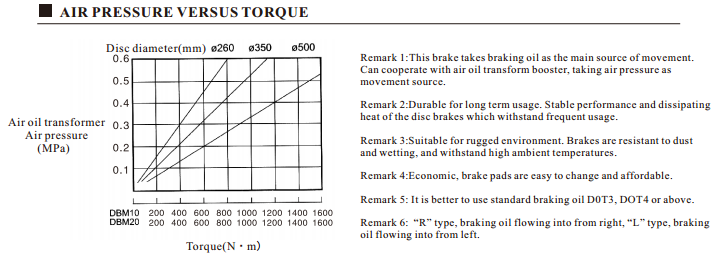

DBM10、DBM20 model hydraulic caliper disc brake technical data:

This hydraulic caliper disc brake also called oil disc brake, it can be match with BST hydraulic booster for larger torque.

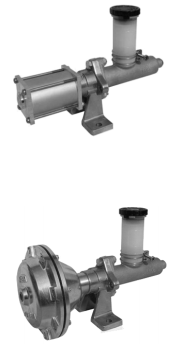

BST hydraulic booster

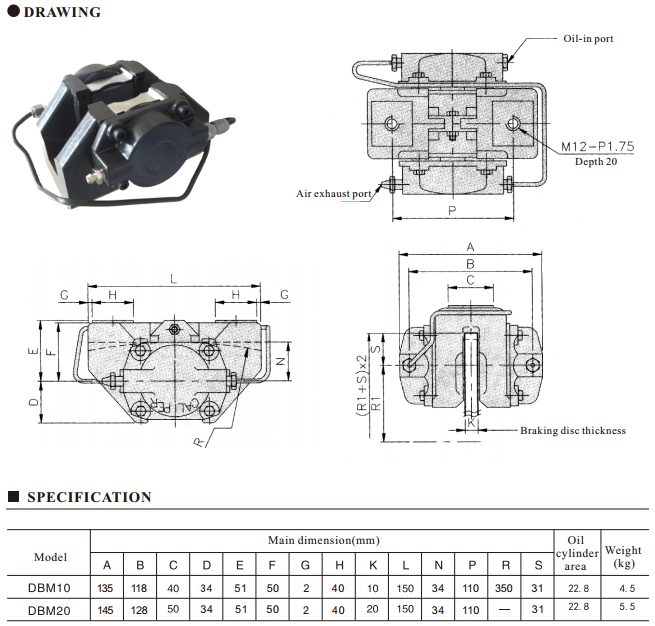

DBM10、DBM20 model hydraulic caliper disc brake structure:
