Constricting clutch is an important equipment of separation system, working stable is the

prerequisite and guarantee to finish the production target. Identify constricting clutch’s hidden trouble during working and solve it in time, this is the basic of clutch stable working. VC model pneumatic drum type clutch reaches clutch subsection start, start motor and then clutch. So as to make the start stable and reduce production cost effectively.

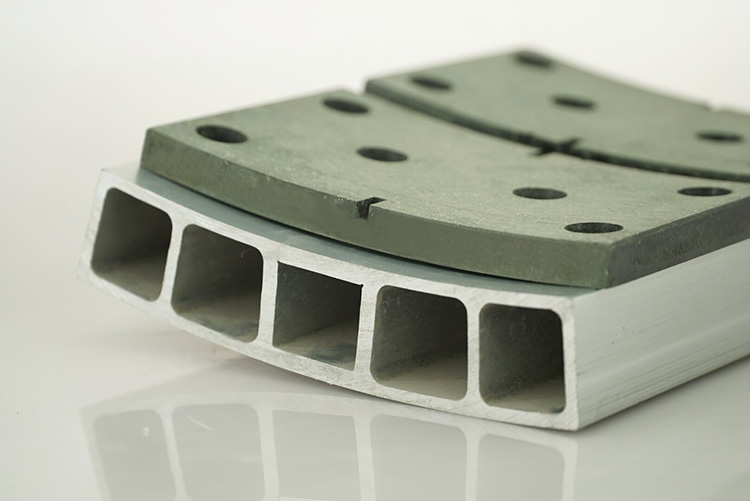

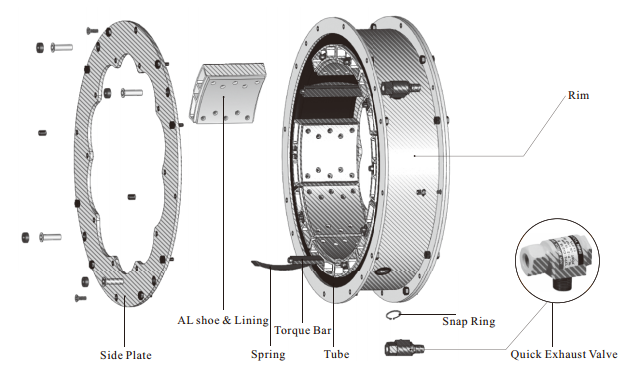

Aluminum shoes & Lining of pneumatic drum type clutch main characters:

1. Cynchronous motor can no-load start, and transmit maximum torque.

2. Motor no-load start reduces impact for power system.

3. Air clutch can adjust the best engagement time, deceleration and reduce impact for mechanical system.

4. Can compensation motor shaft and drum shaft installation tolerance.
